2720H Display Pictures

I have 2 Icom 2720H radios, one in the truck and one in the shack.  Here are some pictures of their displays

Each picture is a THUMBNAIL - Click it to see the full size picture
(and use your 'back' button to return here)

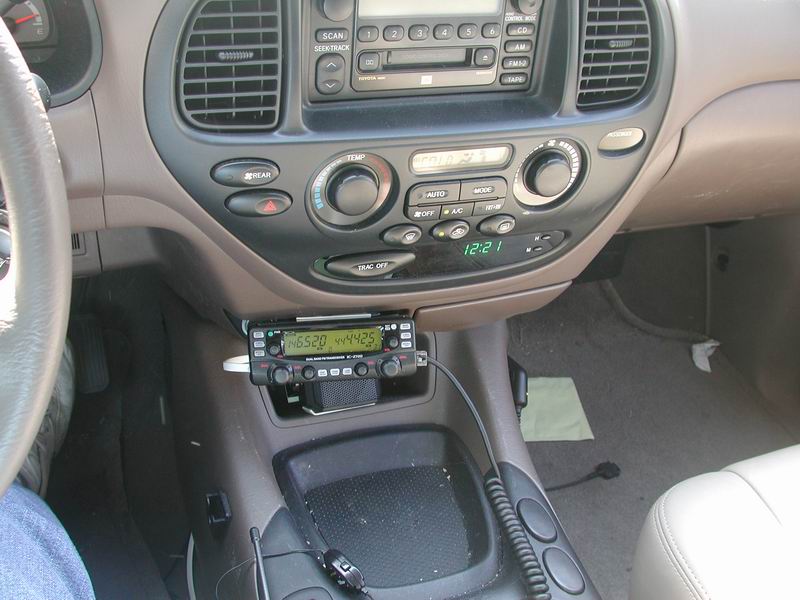

Driver side -- green -- the display is mounted so that it is ANGLED towards the driver (away from the pasenger)

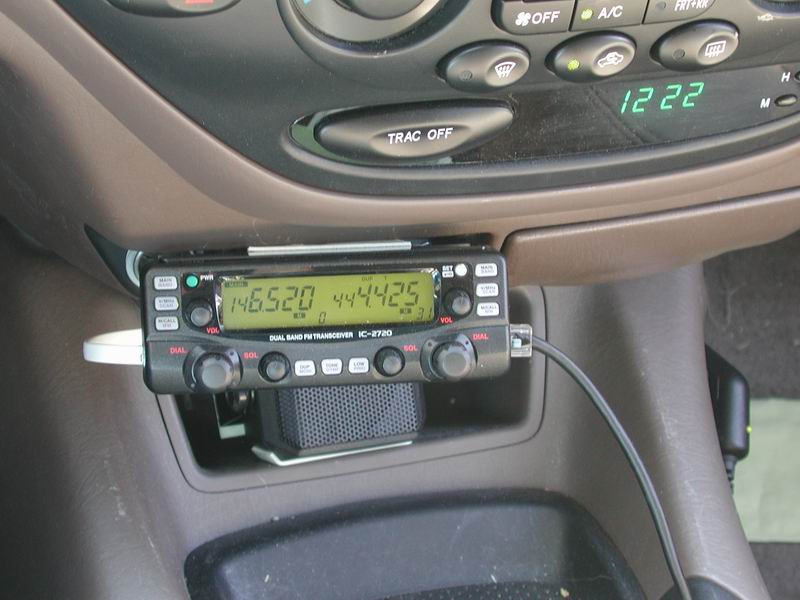

another shot -- display isn't hard to read

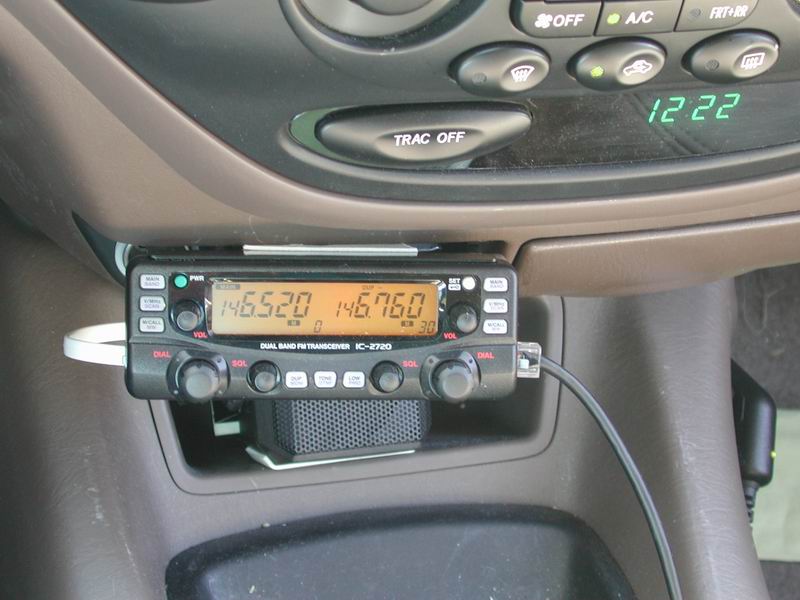

Same shot - but with the Amber display

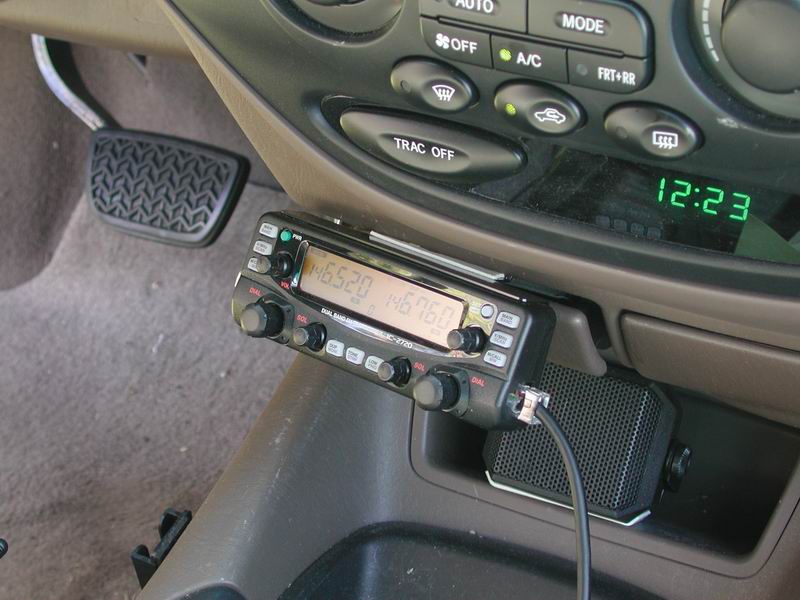

Now from the passenger side - the display is angled away from you here -- but still readable

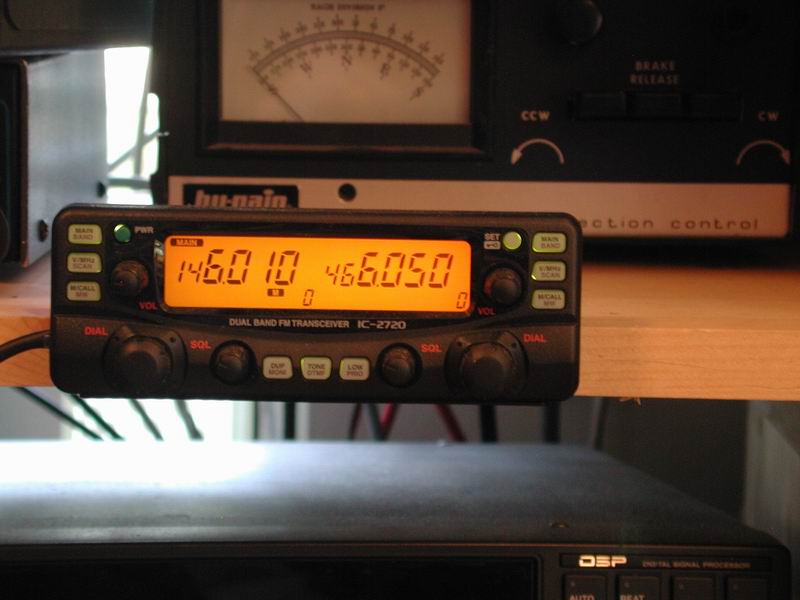

The radio in the shack

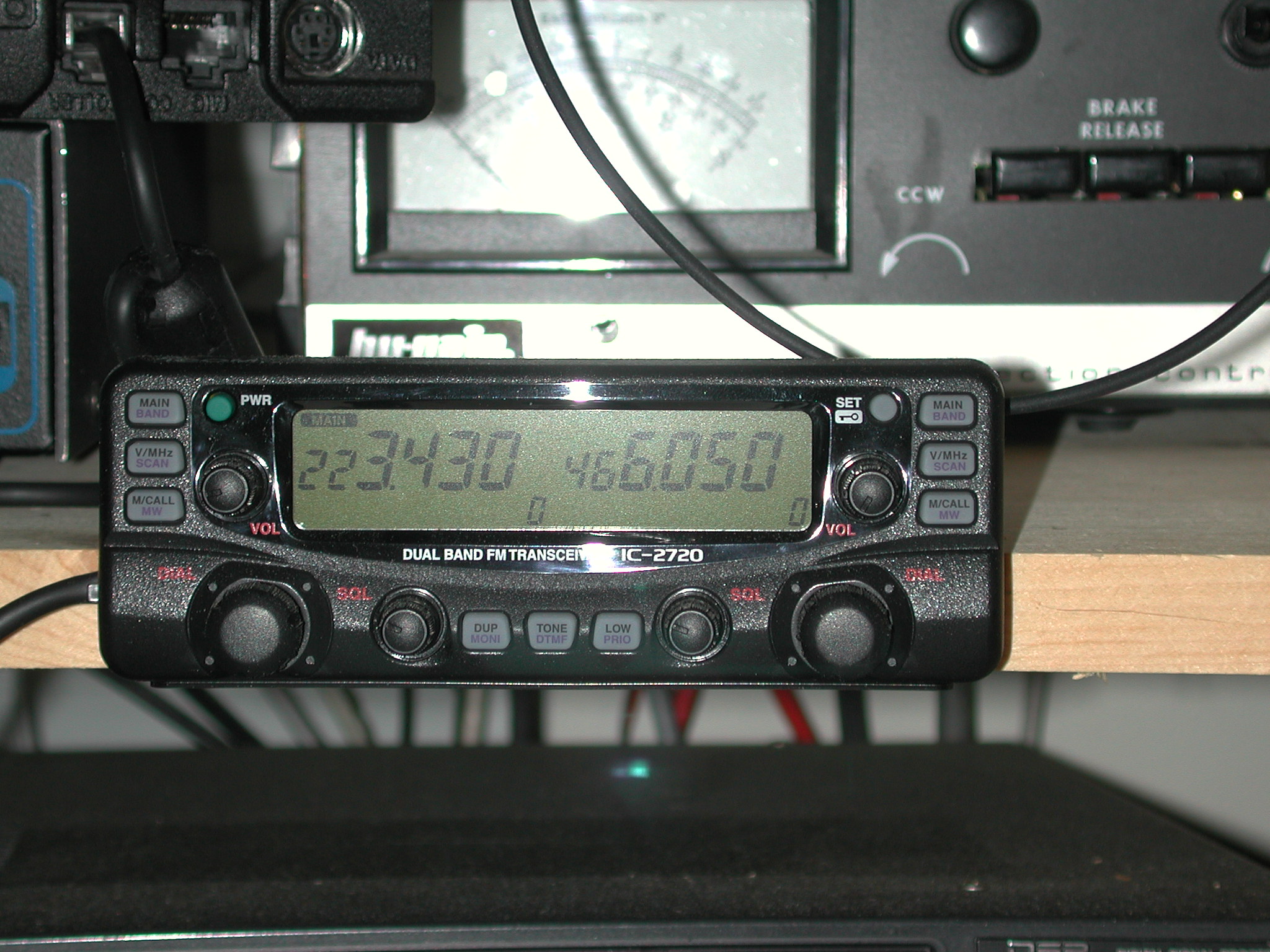

Flash pix -- notice the display without backlight

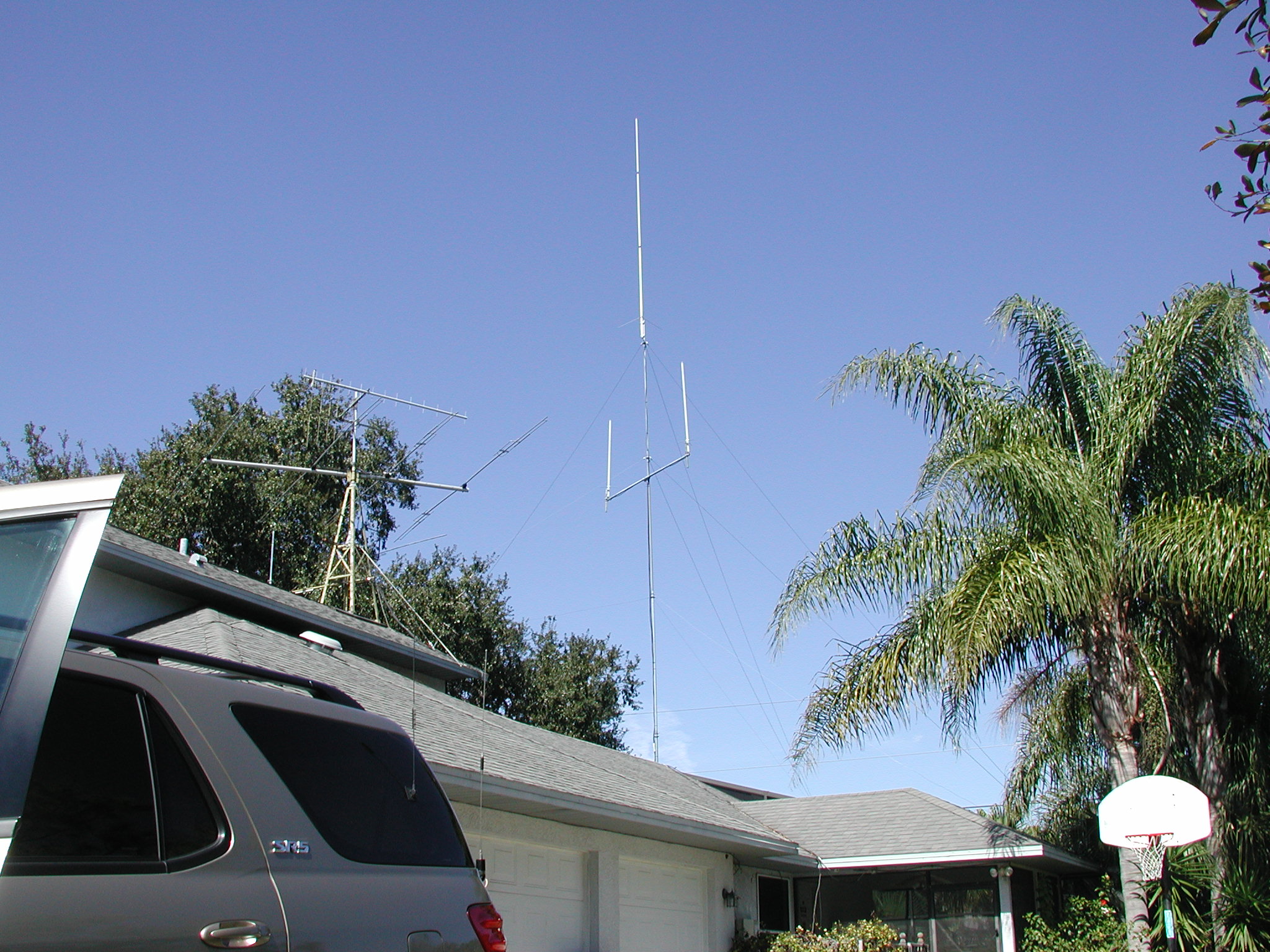

2720H's antennas - mobile and fixed
